College Projects 🗄️

MIPS R10K Style Out-of-Order Processor (EECS 470)

• Designed a 32-bit MIPS R10K Style Out of Order Processor that supports the RV32I subset of RISC-V ISA.
• Implemented various advanced features including N-way Superscalar Width, Early Tag Broadcasting, Early Branch Resolution, Tournament Branch Predictor, Load/Store Queue for Load-Store Forwarding, Non-Blocking Caches, Victim Caches, Banked Cache, Prefetcher Logic and others.
• Averaged a CPI of ~1.4 on general assembly programs, achieved a clock period of 7.8ns.
• Developed a comprehensive SystemVerilog Assertion (SVA) suite for verification of internal data structures and cache subsystems.
• Final Project Repo: 470 GitHub Repo
• Final Project Report: 470 Project Report

Processor Architecture	Synthesized RTL Design	Processor Analysis

Attention Unit for Resource-Constrained Architectures (EECS 570)

• Designed a low power ASIC accelerator for the Flash Attention kernel used in modern ML transformers.
• Implemented the baseline FLASH-D architecture in SystemVerilog.
• Redesigned the Fused ExpMul architecture for fixed point 8-pit operations.
• Integrated the FLASH-D and Fused ExpMul architecture for our final Flash Attention accelerator architecture.
• Developed a comprehensive suite of testbenches and C++ models for verification and PPA benchmarking.
• Final Project Repo: 570 GitHub Repo
• Final Project Report: 570 Project Report

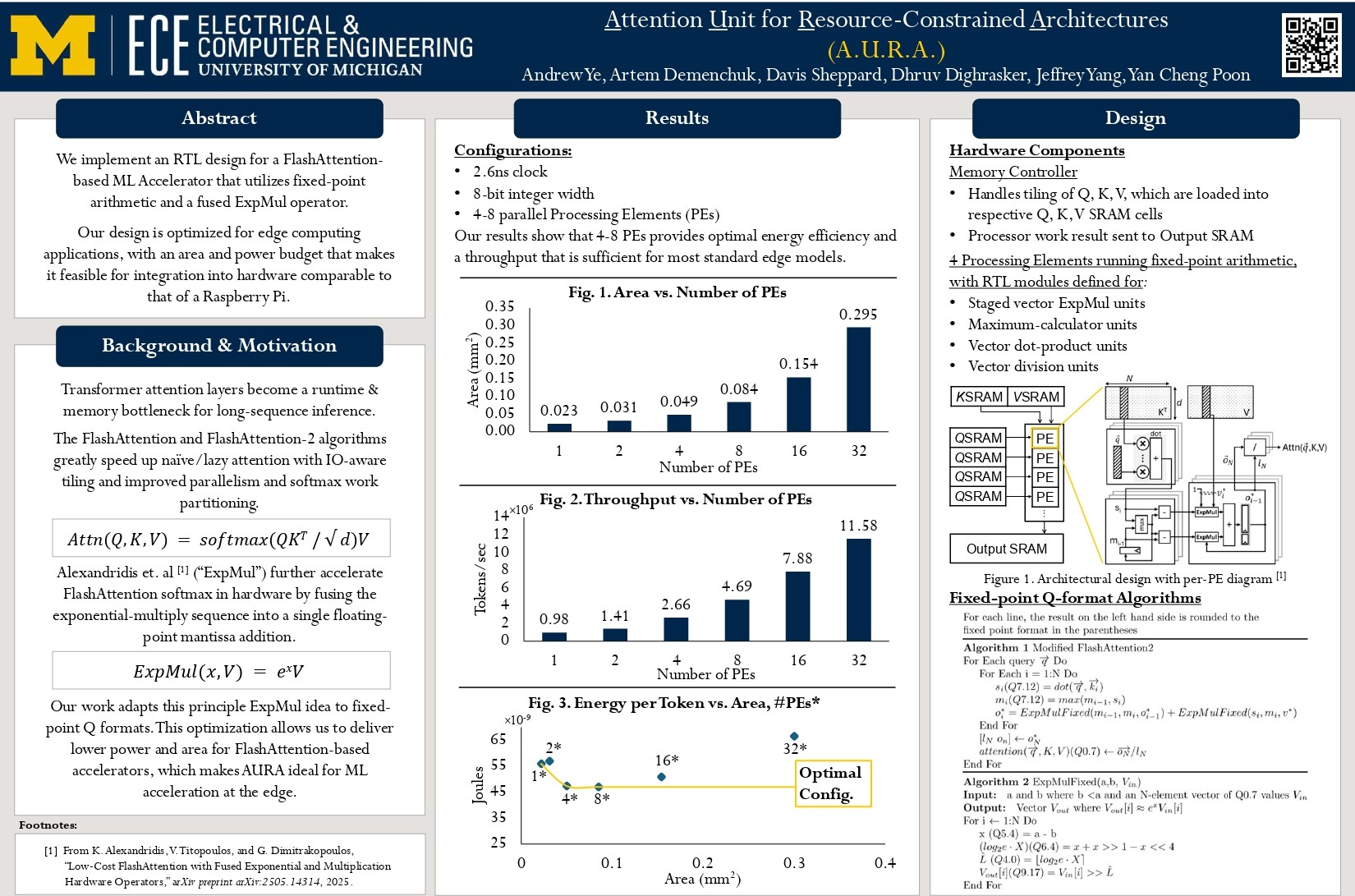

Architecture and Result Poster

SpecNN: Hardware Accelerator for kNN (EECS 573)

• Architected a hardware accelerator for k Nearest Neighbour Search, a key primitive operation in 3D geometry-based algorithms used in autonomous driving, robotics, VR, and even ML/AI.
• Implemented the baseline bit-serial kNN search architecture from the BitNN paper in SystemVerilog.
• Designed a previous kNN cache (taking advantage of query spatial locality) and a running mean threshold logic (taking advantage of sparsity consistency).
• Reduced termination warmup time for the BitNN architecture, increased overall speedup by ~10% for KITTI, SLAM datasets.
• Wrote a cycle-accurate Python simulator modelling the architecture for performance and functional verification.
• Final Project Repo: 573 GitHub Repo
• Final Project Report: 573 Project Report

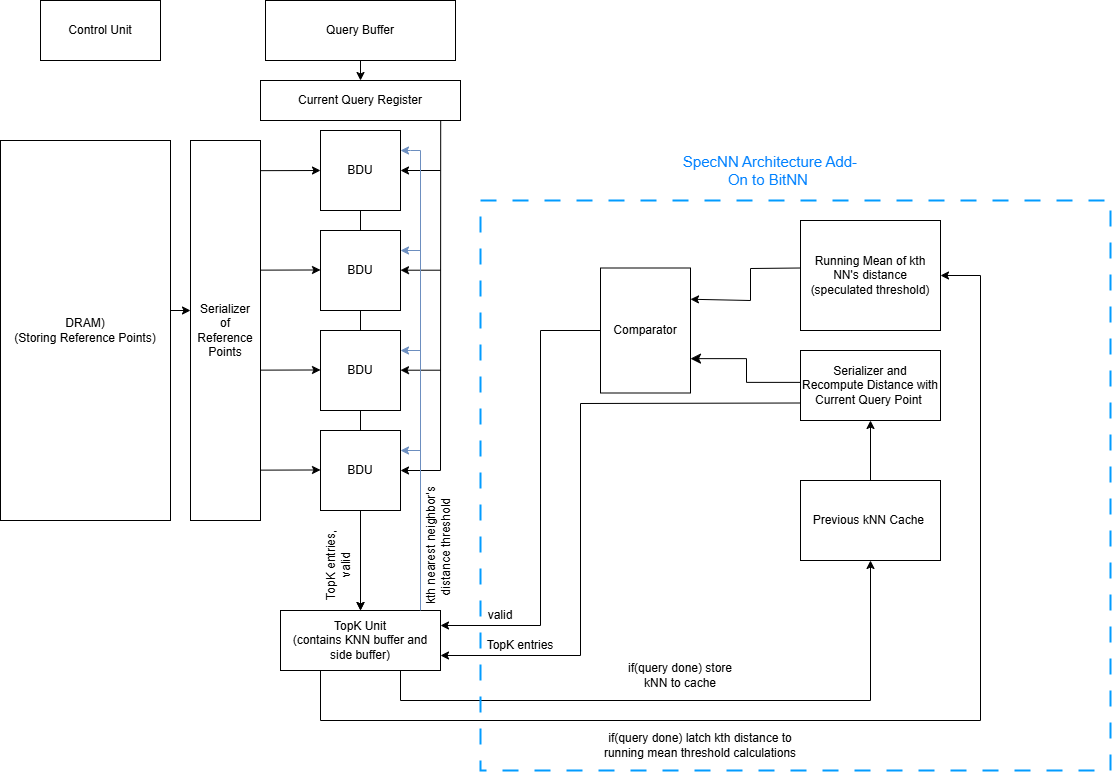

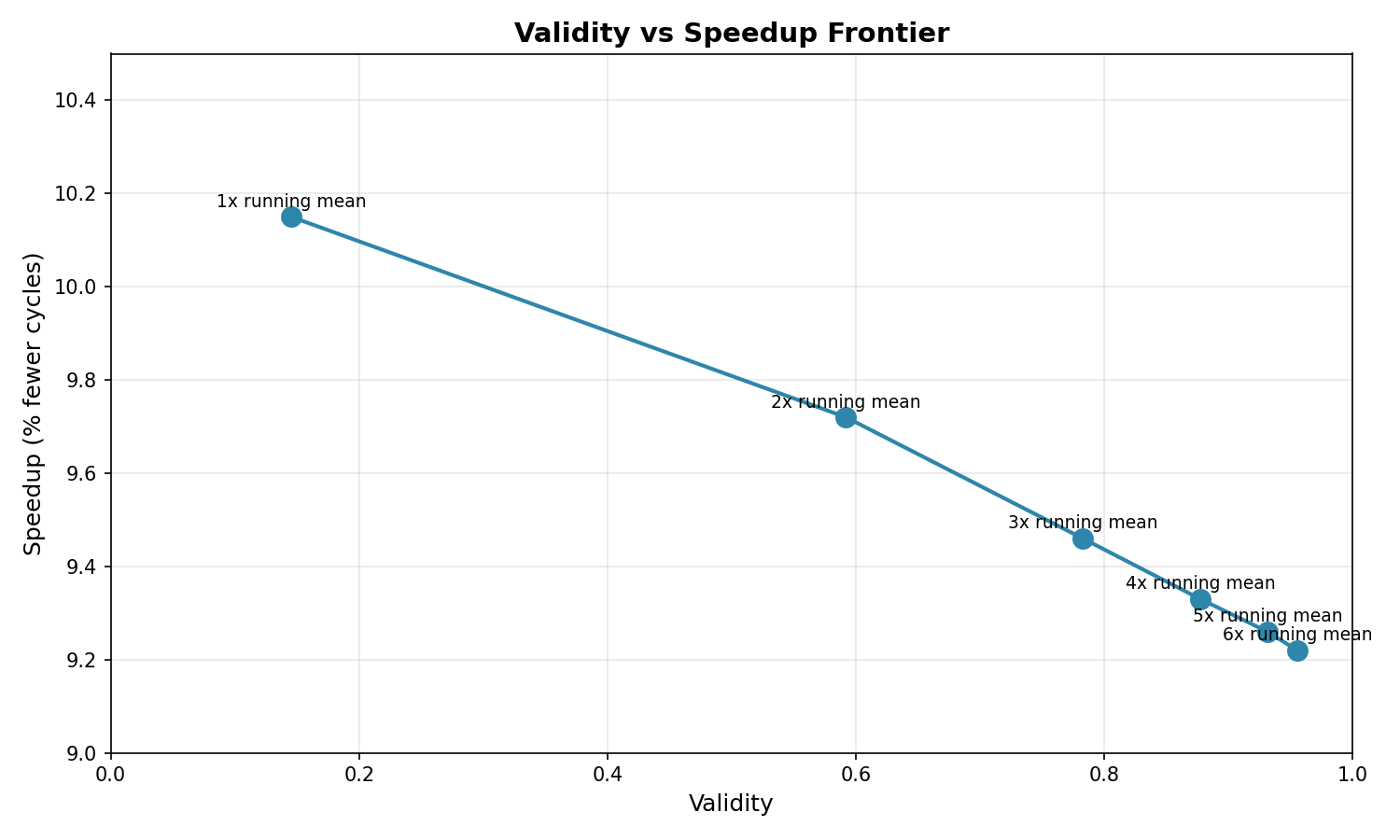

Architecture Diagram	SpeedUp vs Accuracy Frontier Analysis

Four Function Calculator, Traffic Light Controller, UpDown Counter (EECS 270)

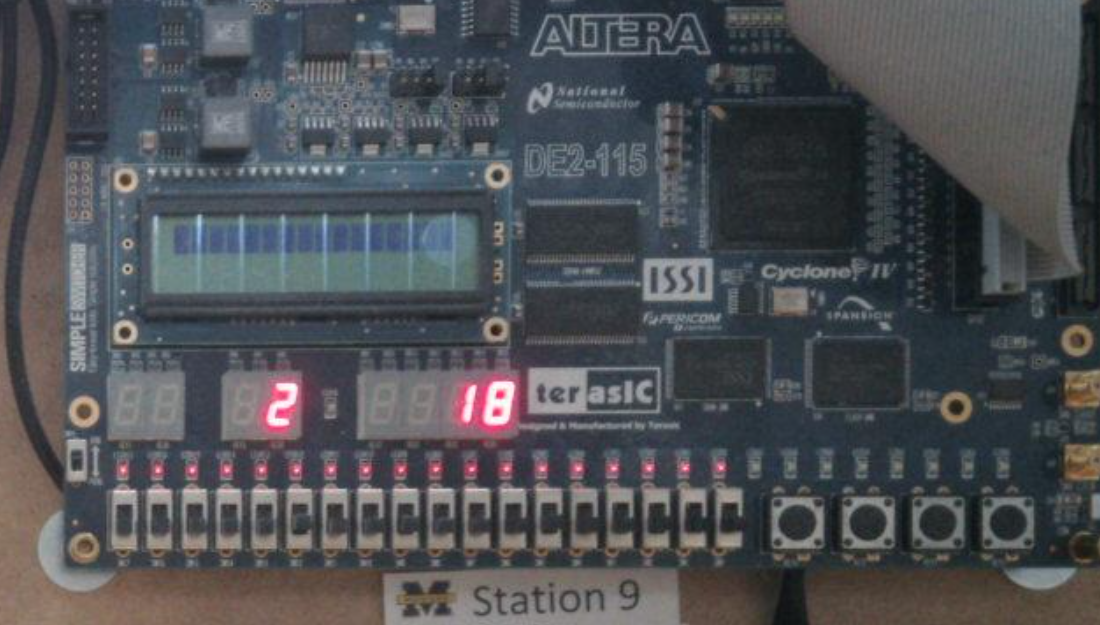

• Developed a Four Function Calculator RTL Design on Altera DE2-115 FPGA (implemented Booth Multiplier, Carry Lookahead Adder, Quotient Divisor)
• Designed a Sensor-Integrated Traffic Light Controller using Sequential Design and the Finite States Machine concepts
• Implemented an UpDown Counter using Sequential Design

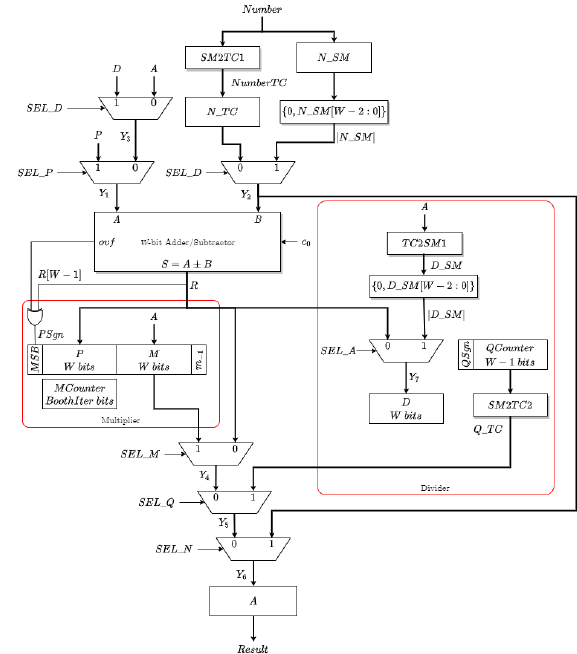

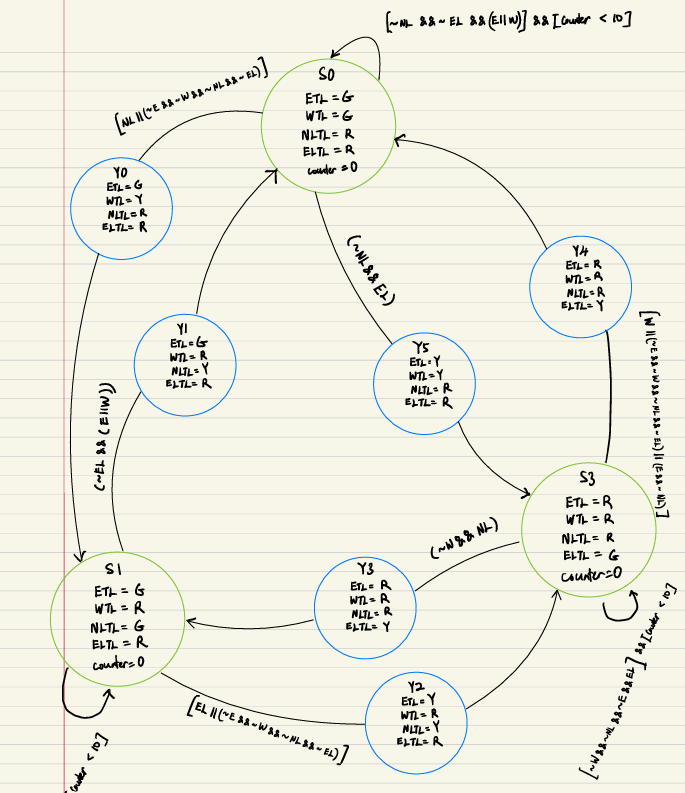

Altera FPGA	Traffic Light Controller FSM	Calculator Datapath

Thread Library, Pager, Multi-Threaded Network File Server (EECS 482)

• Built a preemptive user-level threading systen in C++ using ucontext, implementing FIFO scheduling, mutexes, condition variables, timer/IPI interrupts, and atomic interrupt control

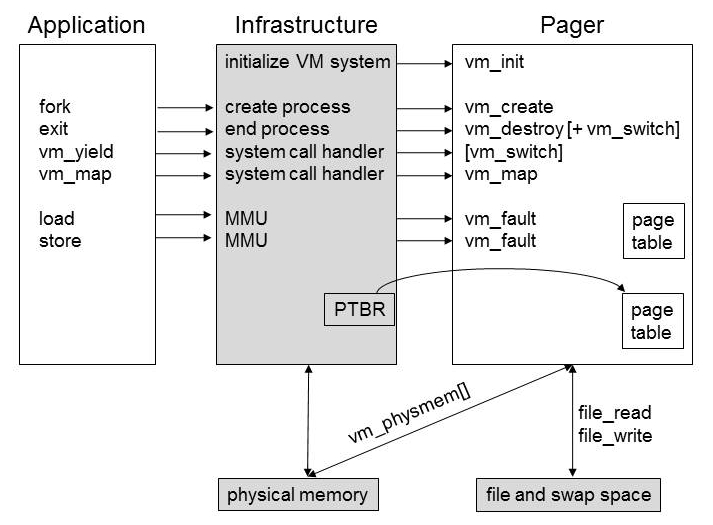

• Designed a MMU-backed virtual memory system in C++ implementing page table management, page faults handling, eager swap reservation, copy-on-write sharing, pinned zero page optimization, and clock-based replacement.
• Implemented a multi-threaded network file server with hierachal file system, supporting concurrent client requests, block-level read/write, and directory/file management using TCP sockets and upgradable mutexes.

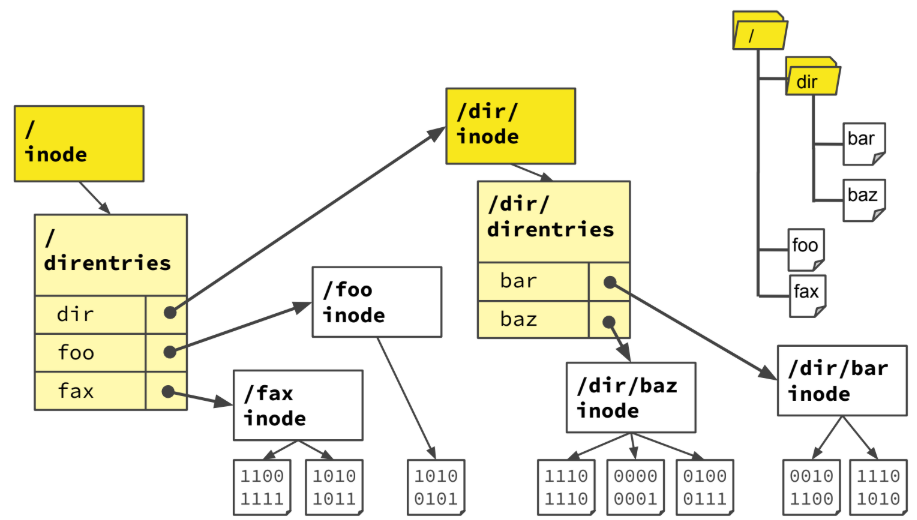

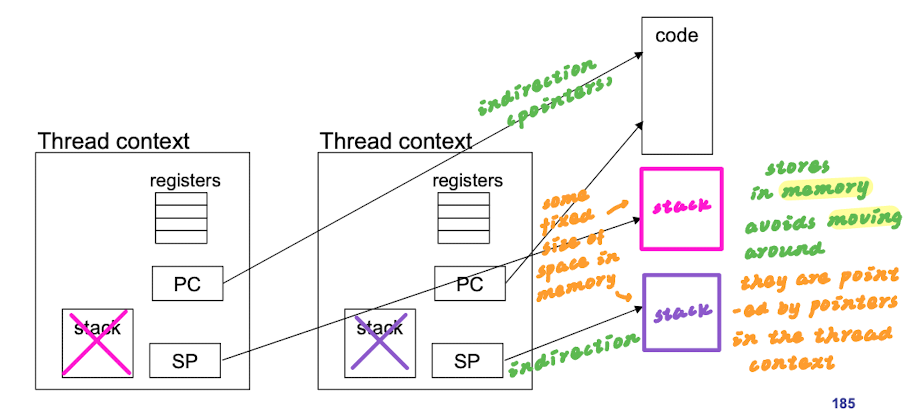

Thread Library Context Manager	Pager Structure	Hierachal File System

Low-Power/High-Speed Dual-Mode (Add/Accumulate) Adder Transistor-level Circuit Design (EECS 312)

• Implemented a transistor-level design of a High Speed 8-bit Ripple Carry Adder using Dual-Rail Dynamic Logic Variant Implementation with Cadence Virtuoso
• Engineered a transistor-level design of a Energy Efficient 8-bit Ripple Carry Adder using Pass Transistor Logic and Transmission Gate Logic Hybrid
• Developed transistor-level designs of Muxes, D Flip Flops, XOR gate, and Latches
• Floorplanned, Placed and Routed the dual-mode adder architecture design, achieving timing closure at 1.51Mhz and reducing area by 20%
• Reports Published: 312 Report

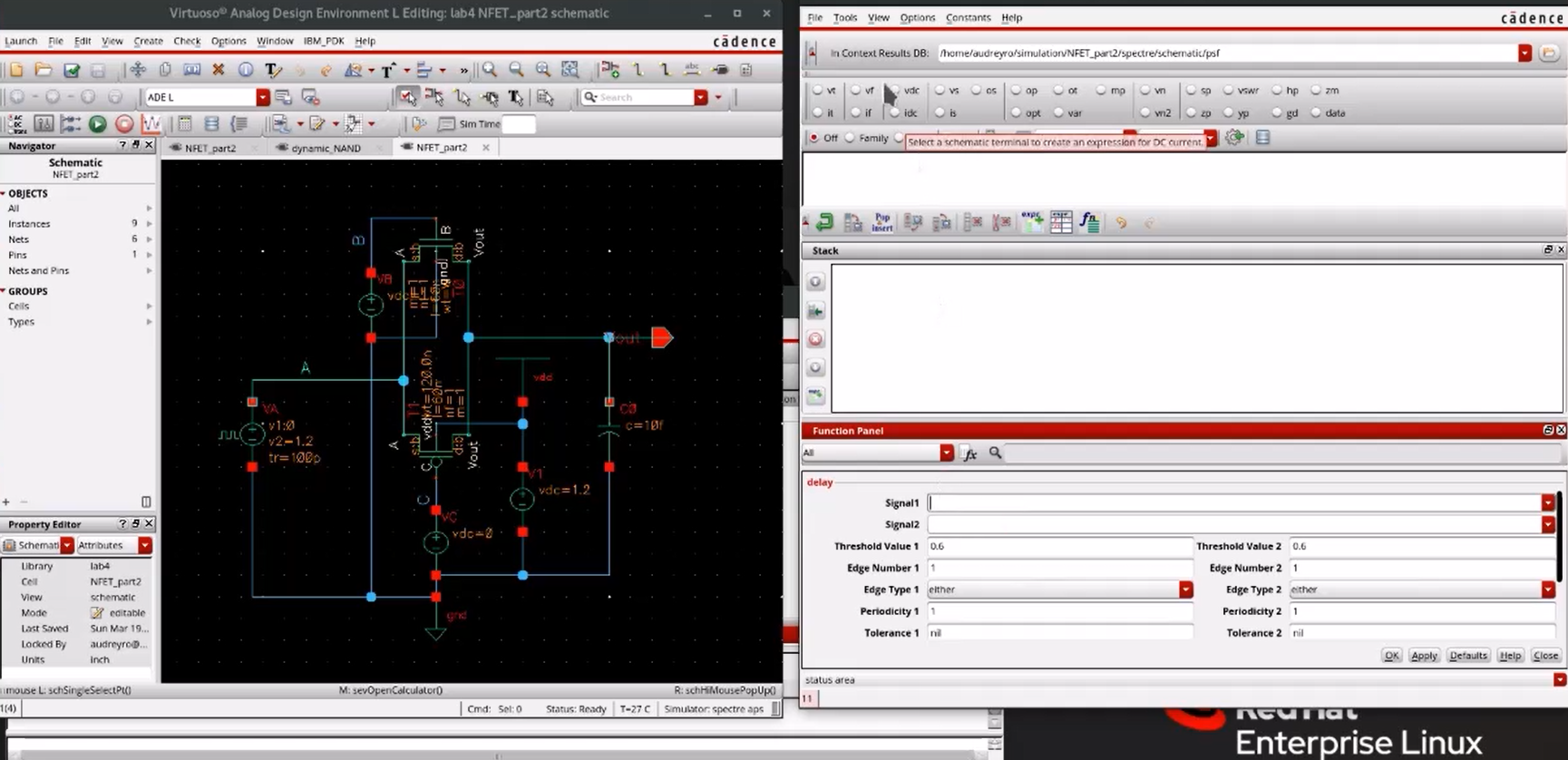

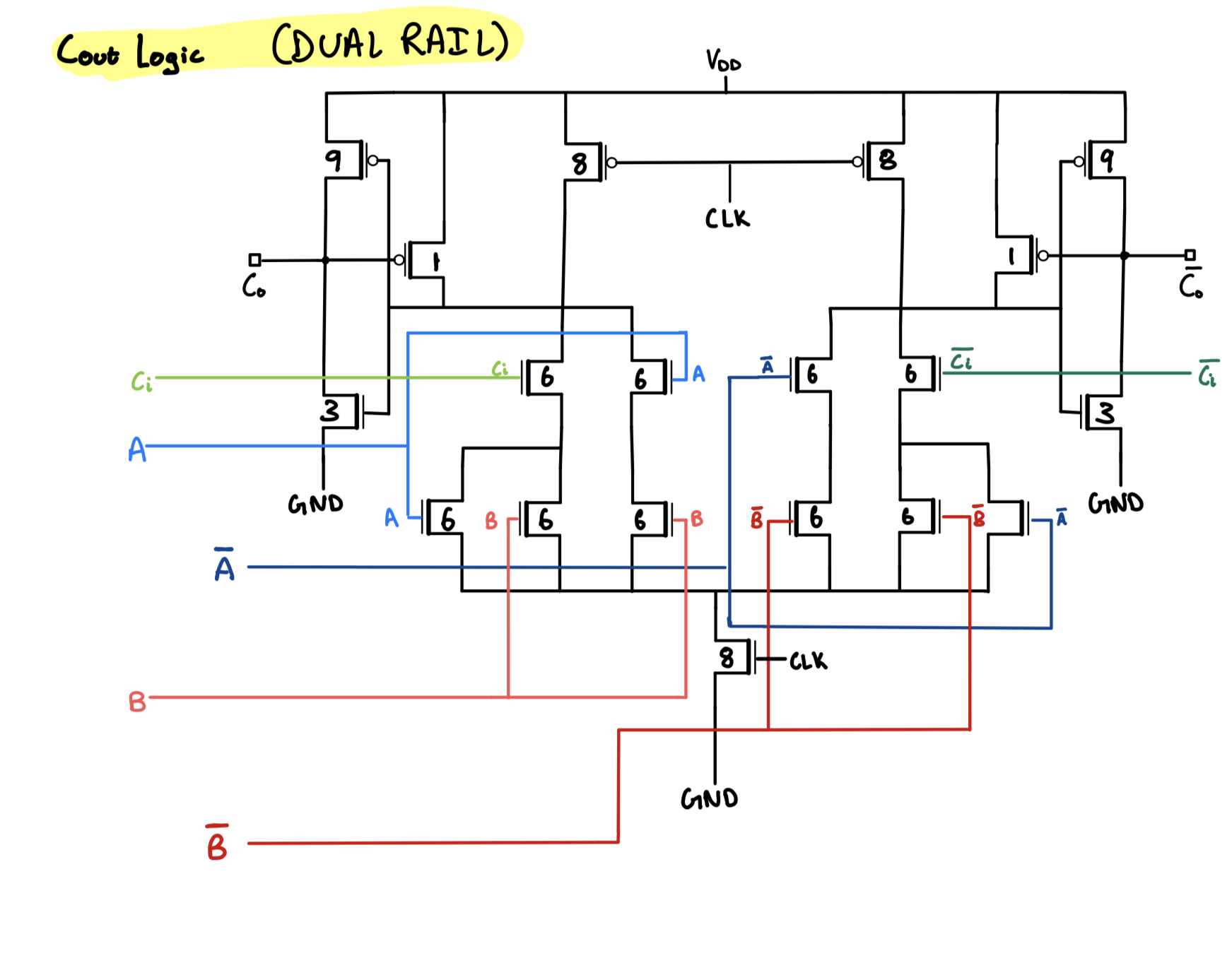

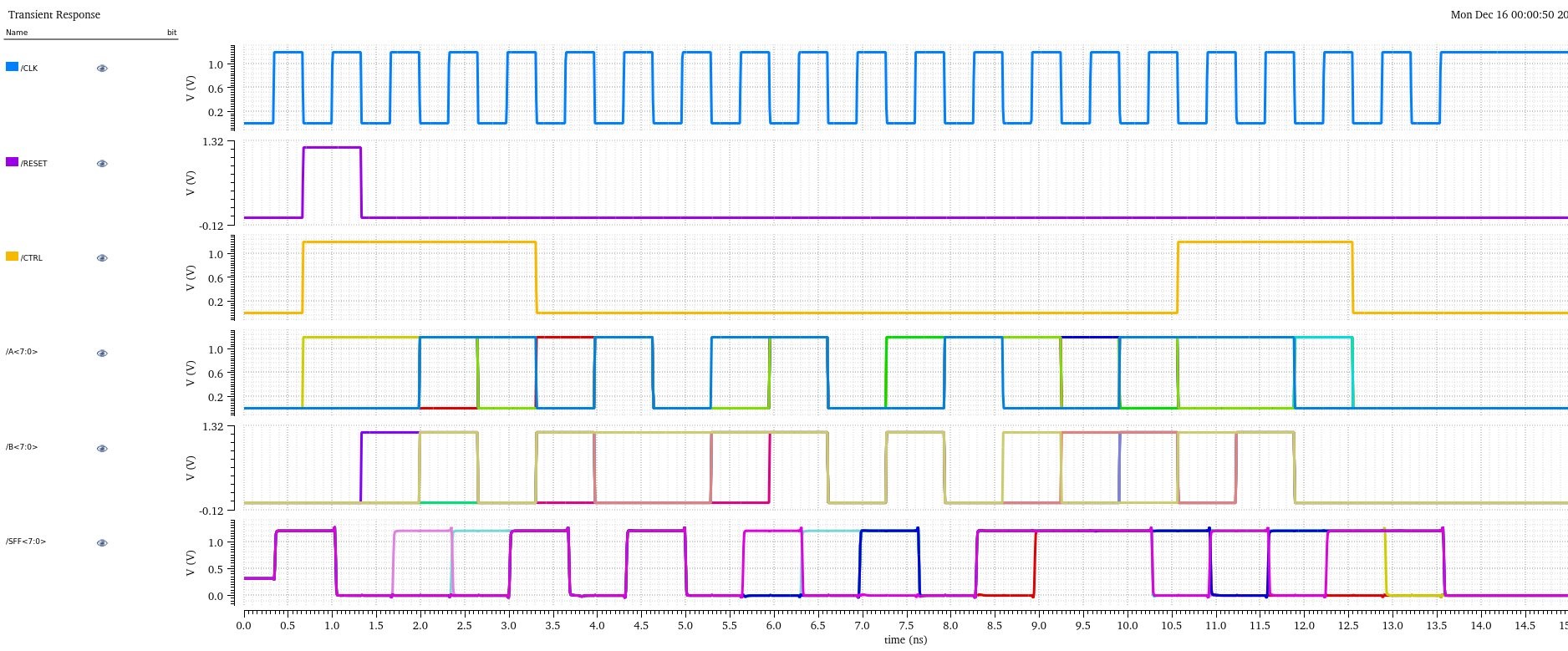

Cadence Virtuoso	Schematic Drawing	Waveform Generated

LC2K ISA Assembler & Linker, 5-Stage Pipelined Processor Simulator, Cache Simulator (EECS 370)

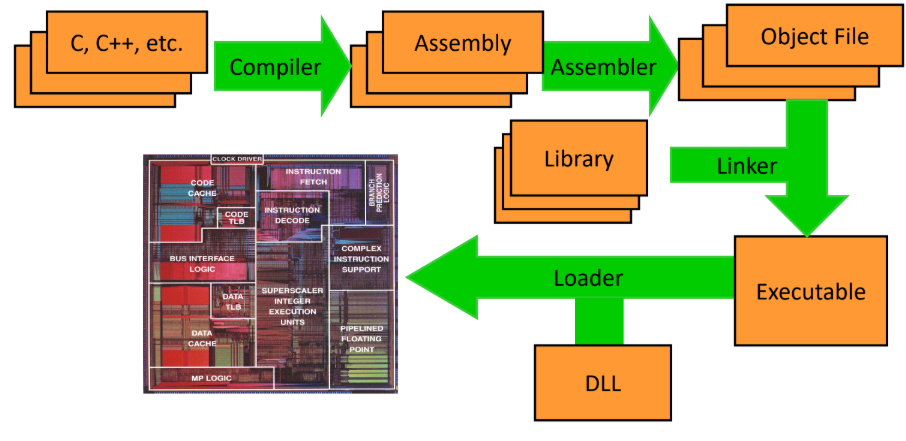

• Wrote a assembler program for converting LC2K assembly code to machine code object files
• Wrote a linker program for linking object files and libraries to create executables for processors
• Wrote a cycle-accurate LC2K 5-Stage Pipelined Processor simulator in C with hazard handling mechanism such as data forwarding and Speculate & Squash
• Wrote a write-back, write-allocate set-associative cache simulator in C with parameterizable cache, set size

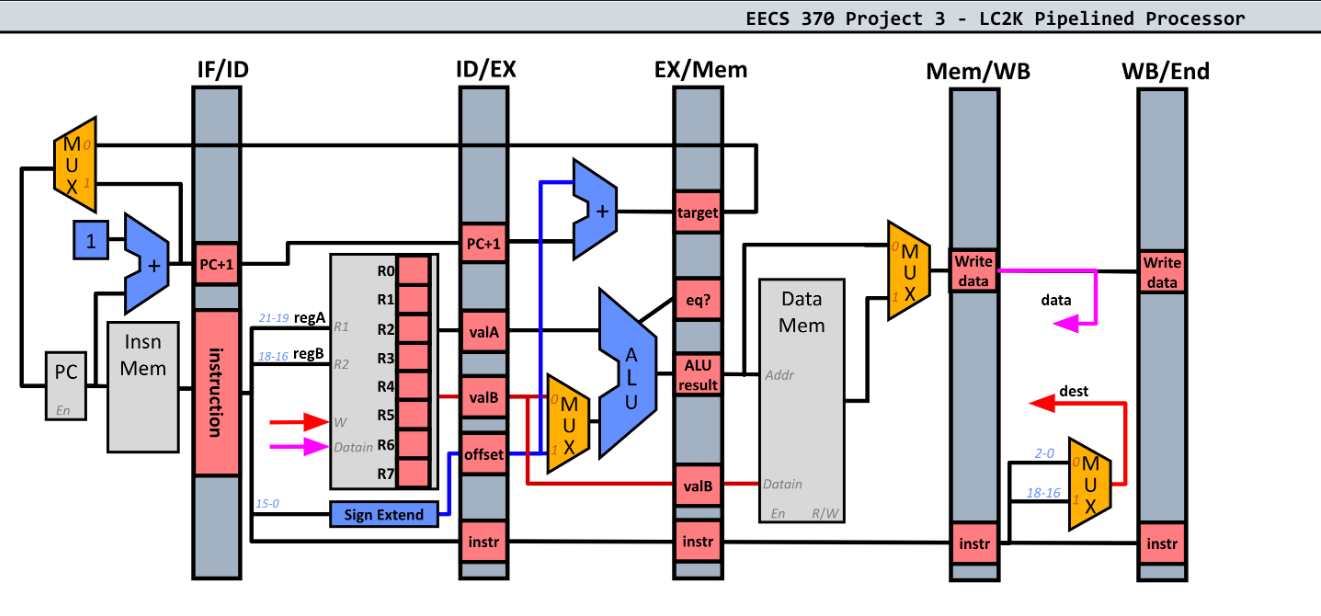

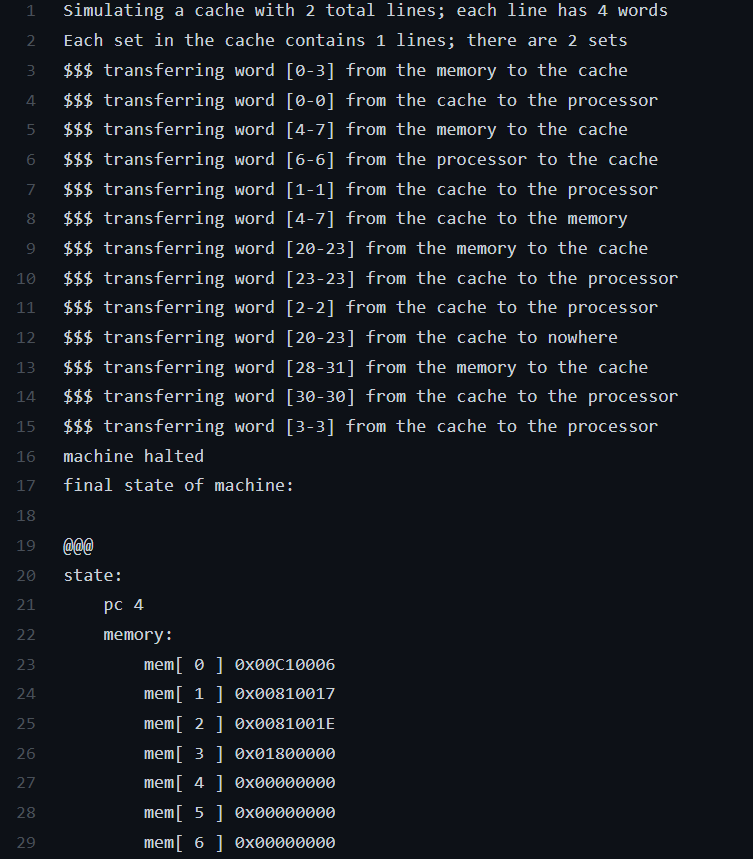

LC2K Asembler & Linker	5-Stage Pipelined Processor Architecture	Cache Simulator Program

CUDA kernel for custom PyTorch operator (EECS471)

• Refactored CUDA kernel code for a custom PyTorch operator, optimizing the convolution layer for the CNN
• Utilized many CUDA optimization techniques including shared memory convolution, weight matrix in constant memory, and loop unrolling to take full advantage of the V100 GPU architecture
• Reduced execution time of the convolution layer by ~500% (0.8s to 0.15s) for predicting 10000 images from the MNIST-Fashion dataset

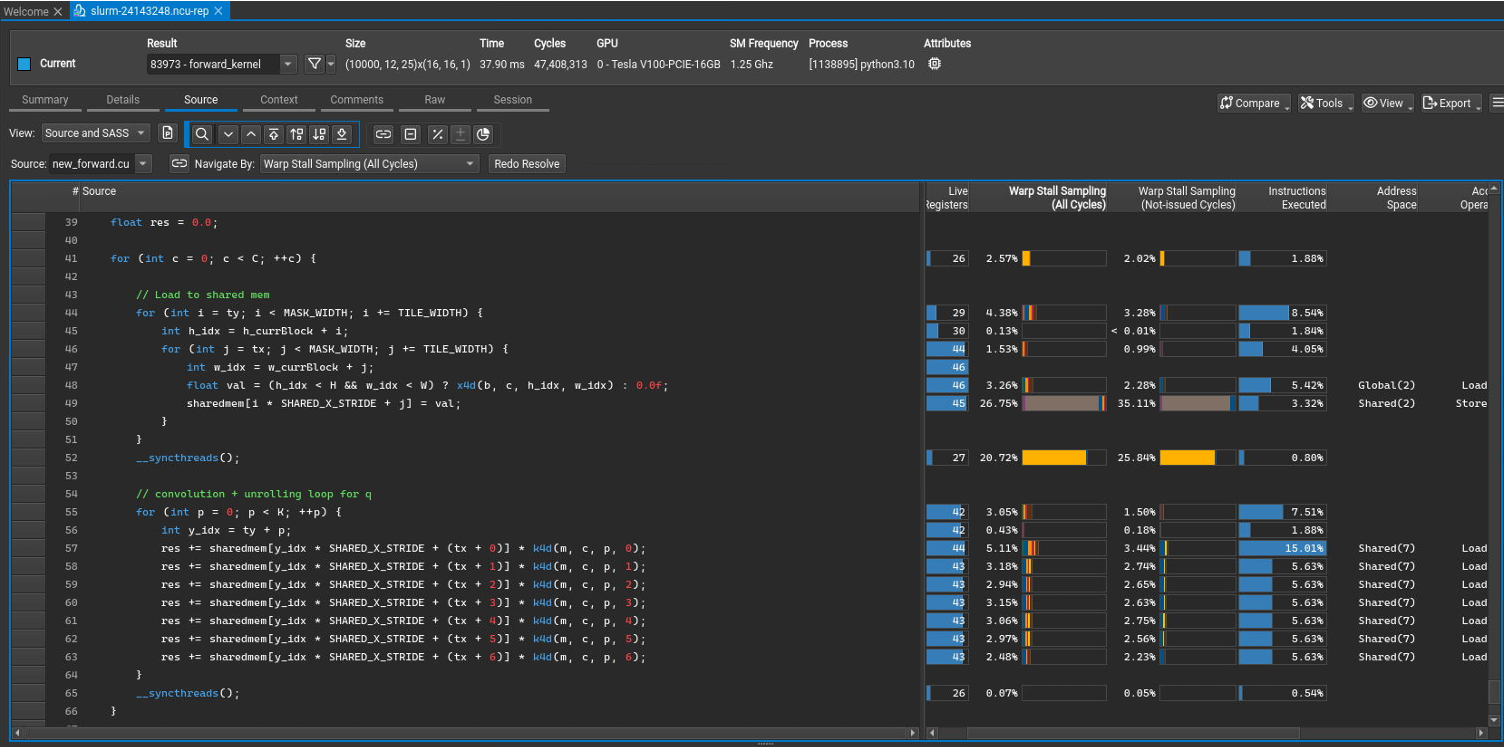

• Profiled the kernel code execution speed using NVIDIA NSight Profiler
• Reports Published: 471 Report

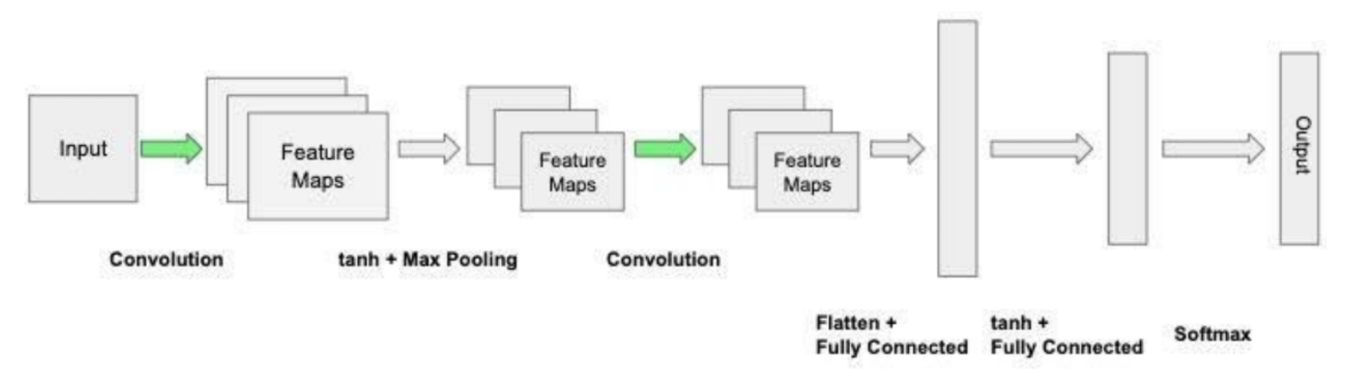

CUDA Kernel Architecture Diagram	NVIDIA NSight Profiler

Simple SQL Database, Words Morphing Algorithm, Optimal Route Finding Algorithm (EECS 281)

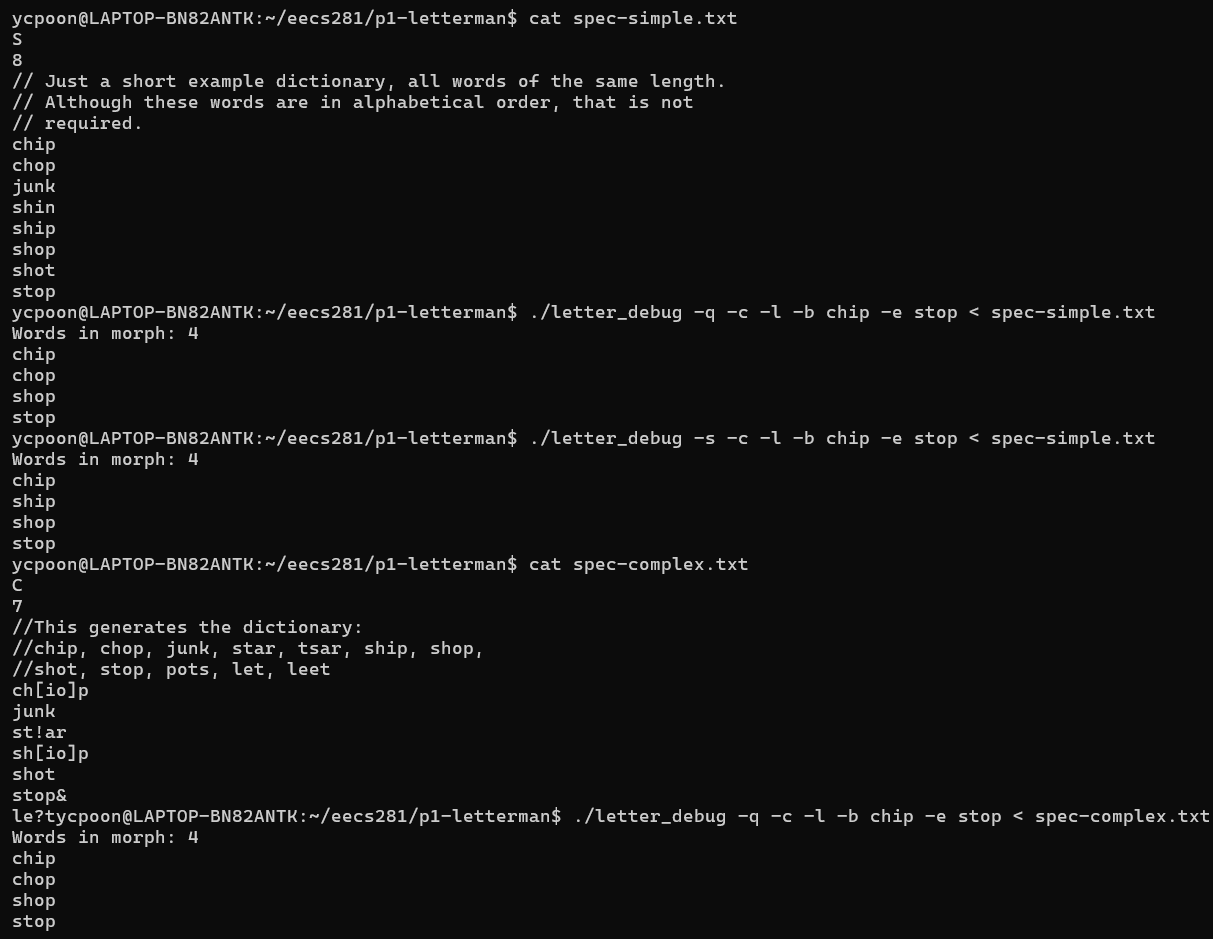

• Developed a Letterman Words Morphing Algorithm using Stacks and Queues
• Designed a Minemap Escape Optimal Route Finding Algorithm using Priority Queues

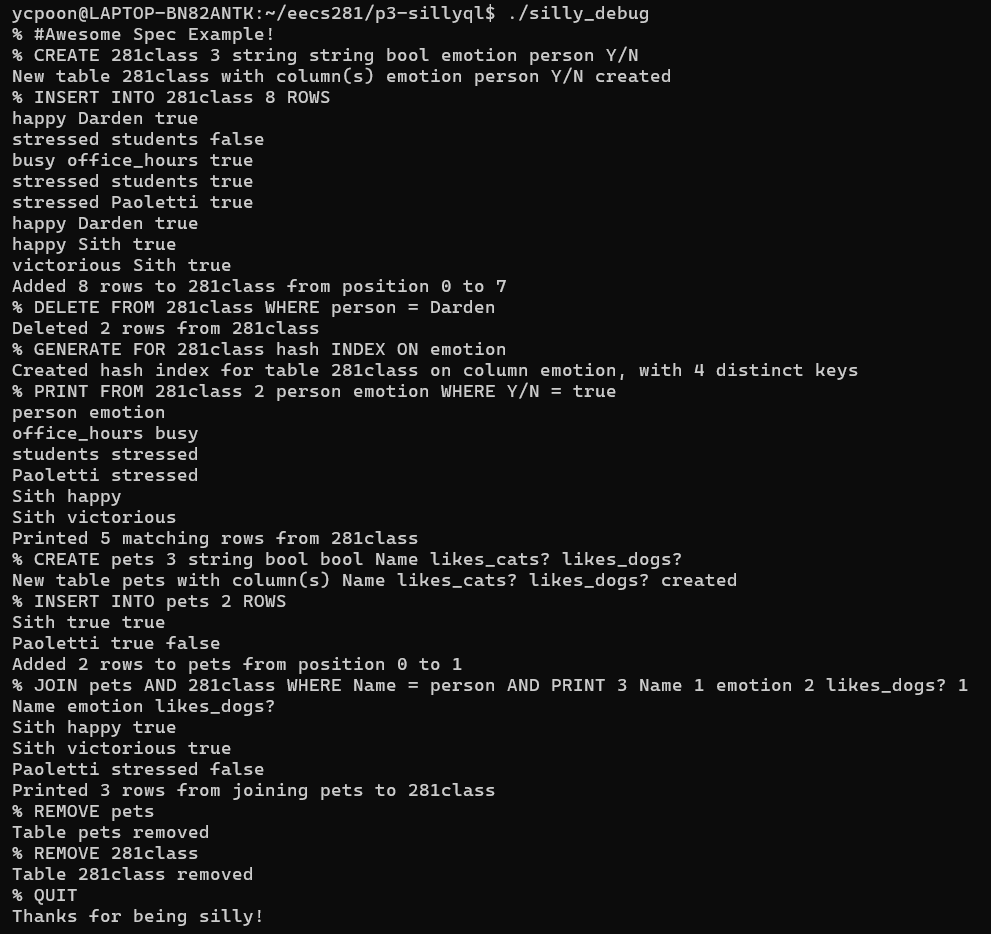

• Implemented a simple SQL database using Hashmaps and Ordered Maps

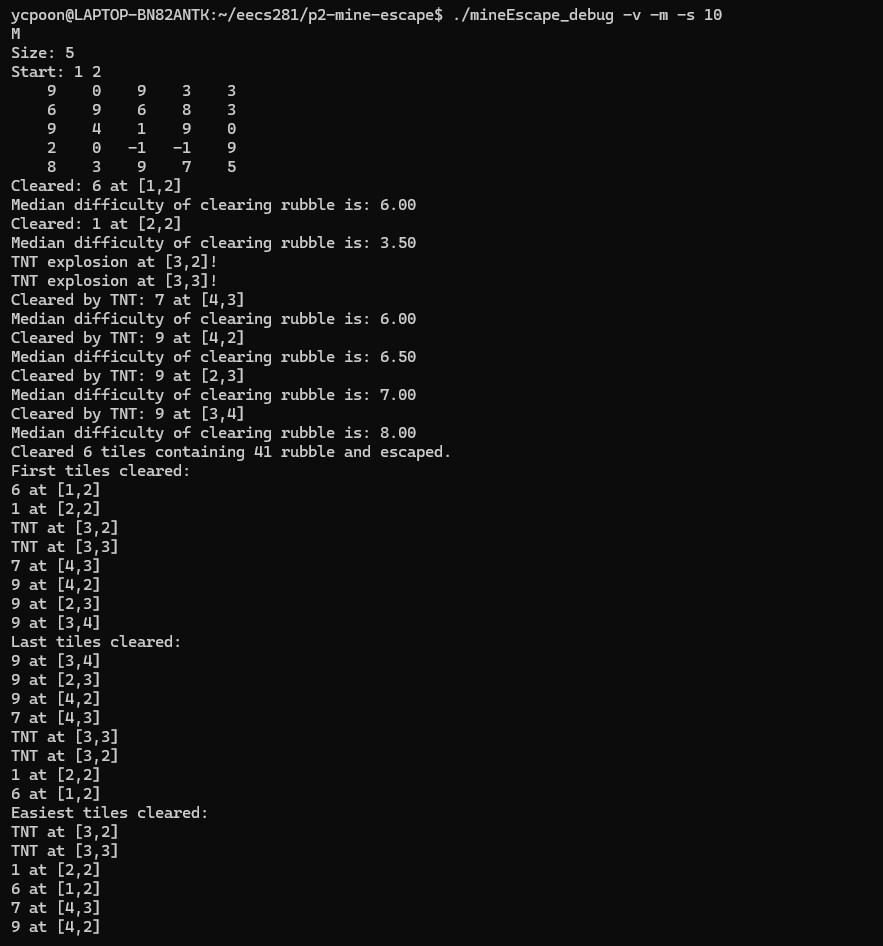

SQL Implementation	Mine Escape Route Finder Program	Letterman Morphing Program

RLC Circuits, Op-Amp Circuits (EECS 215)

• Used Waveform Generator to Measure Voltage

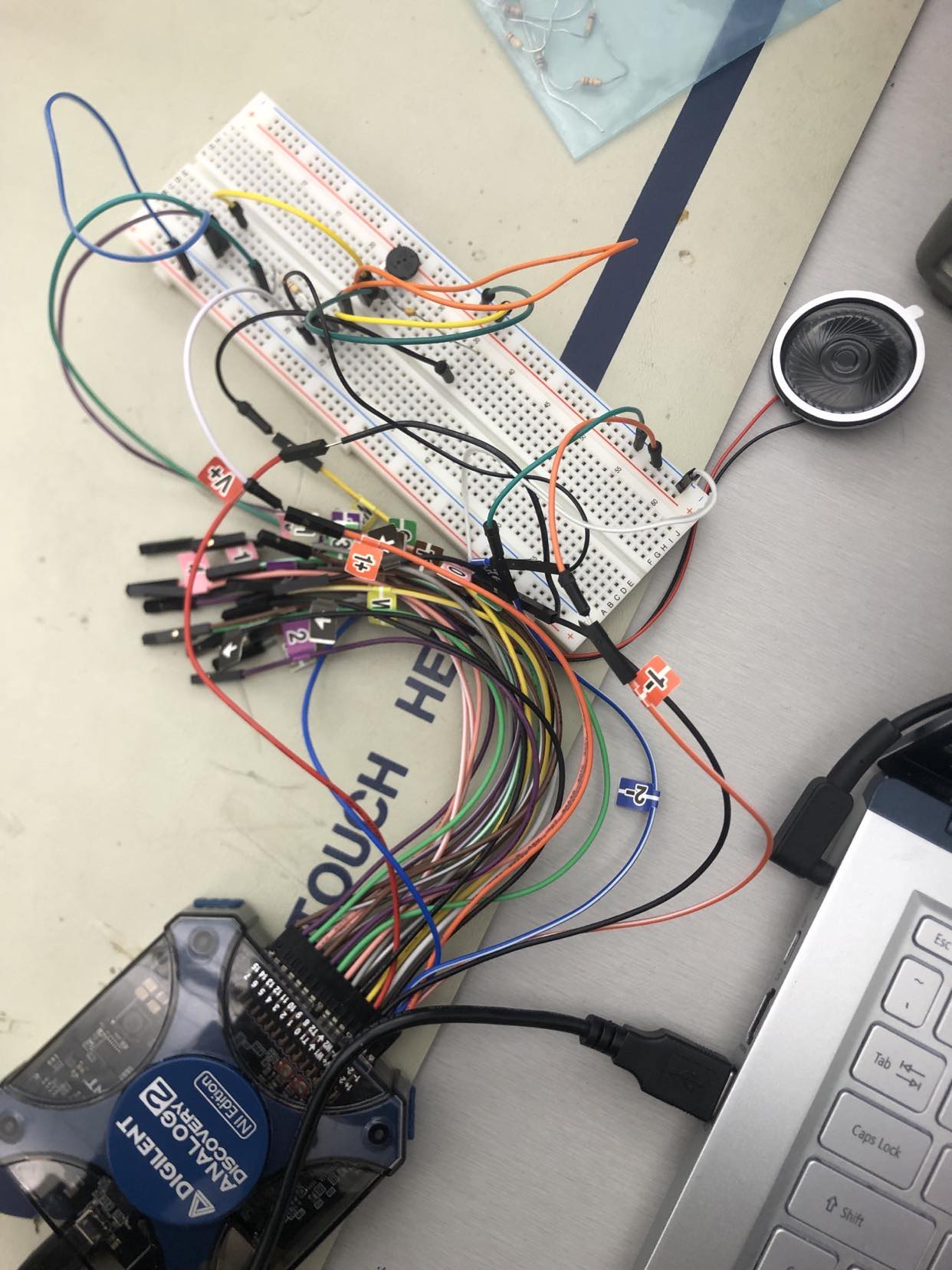

• Built RLC Circuits & Op-Amps Circuits on breadboards
• Hands-on experience with powering Audio Transmitter with Rheostat

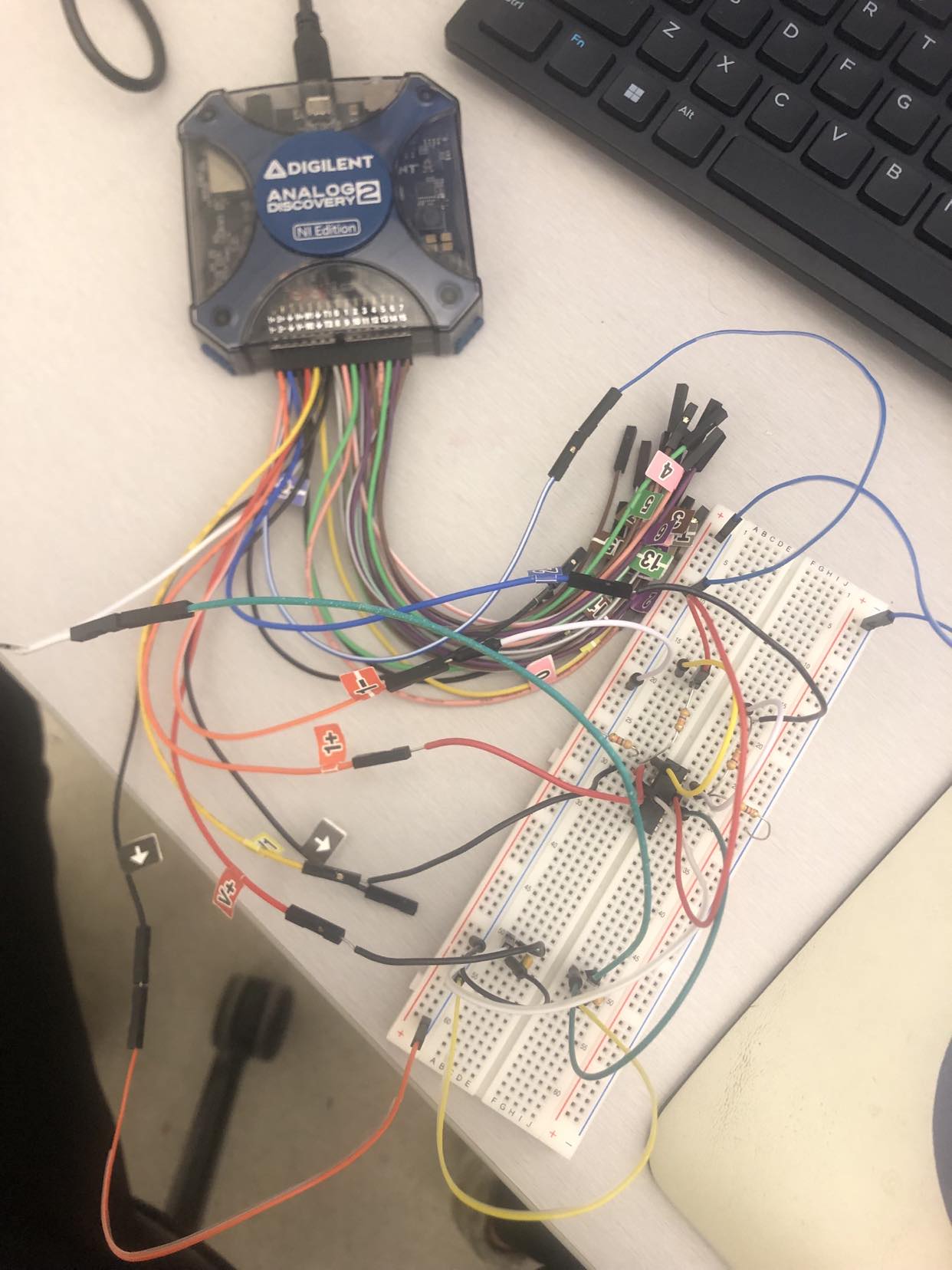

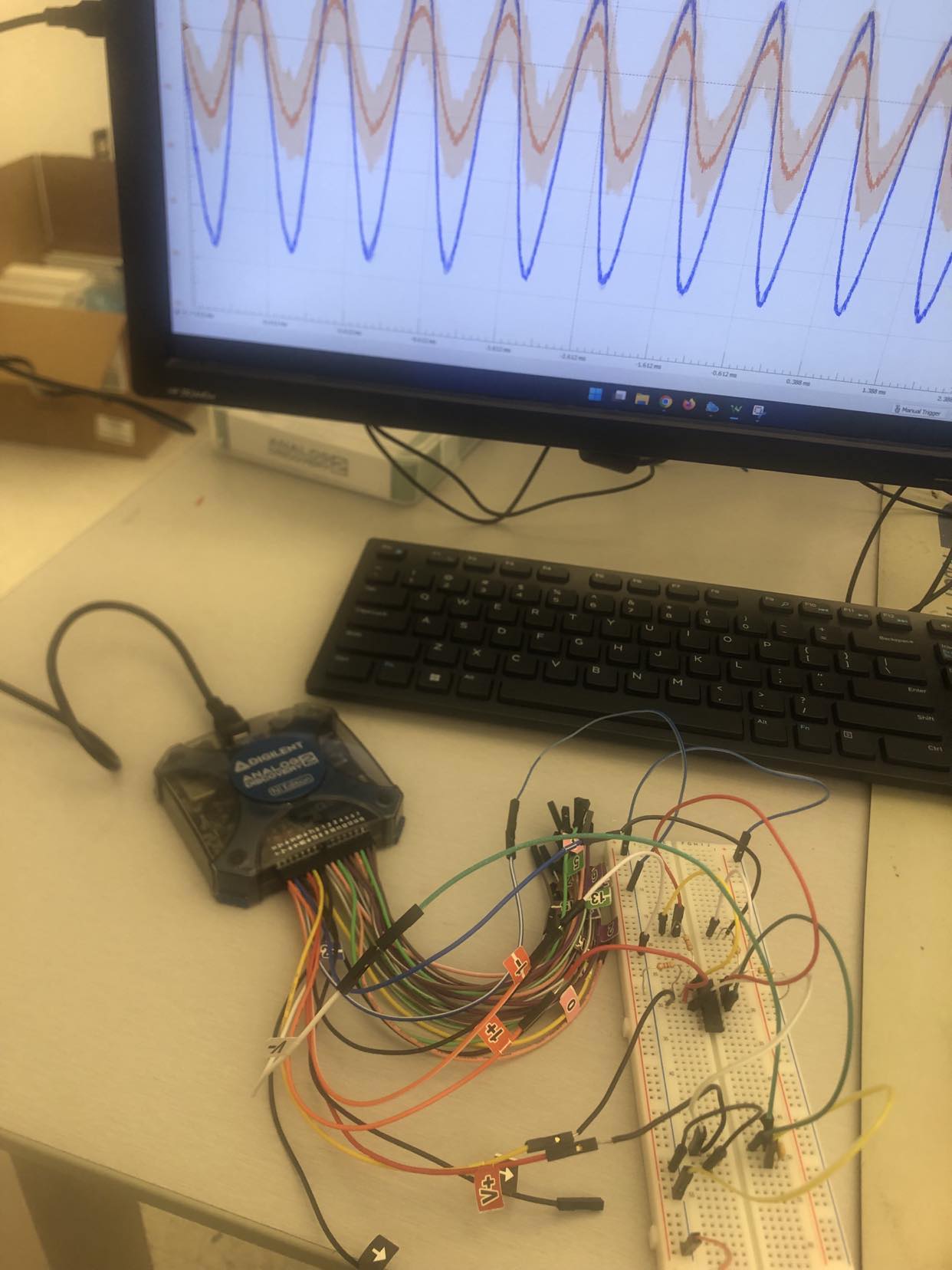

Circuits & Waveform Generator 👇

Euchre Card Game, Post Classifier Program, Seam-Carving Algorithm (EECS 280)

• Developed Euchre Card Game Program with in-built AI Opponent
• Designed a Posts Classifier Machine Learning Program that takes in training data and predicts post classifications

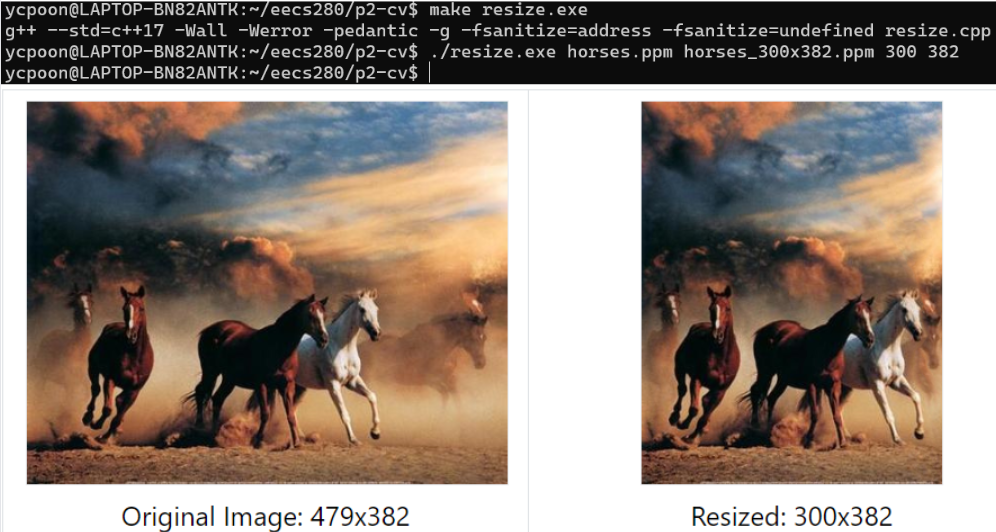

• Implemented a Seam-Carving Algorithm for images

Euchre Game with AI	Machine Learning Post Classifier	Image Resizer Program

Custom Bash Shell, Pig-Latin Translation Program, Customized Python Library (EECS 201)

• Built and customized my own bash shell for color coded and working directory displaying shell prompts; Added functionalities such as command for adding date to filename, a combined command for git add, commit, push, and a command for file reorganization
• Engineered a English to Pig-Latin Translation Program using advanced regex and shell scripting
• Created a dynamically-linked Python library supporting plugin functionalities

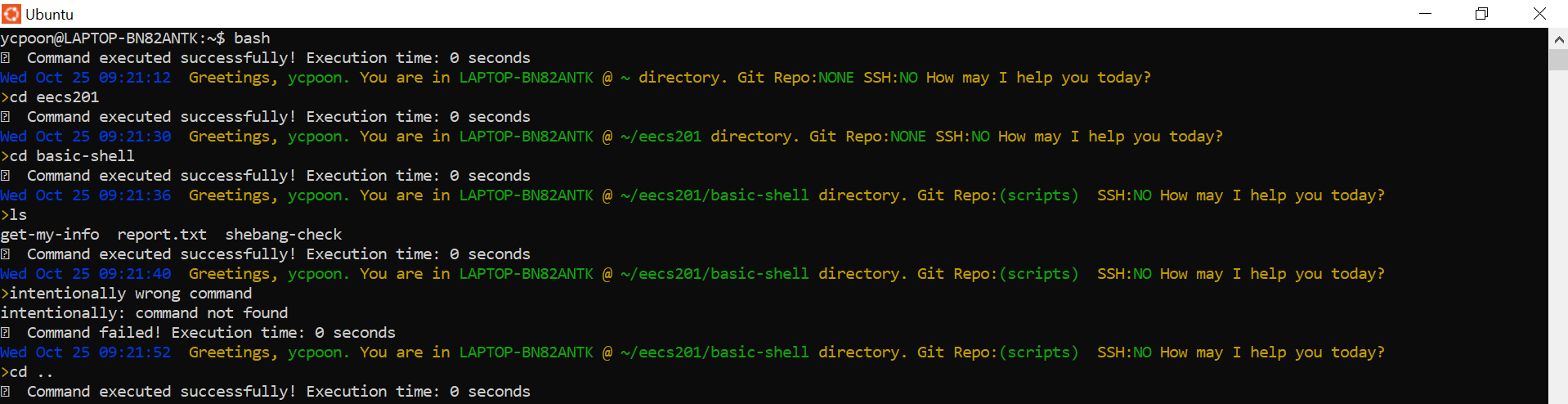

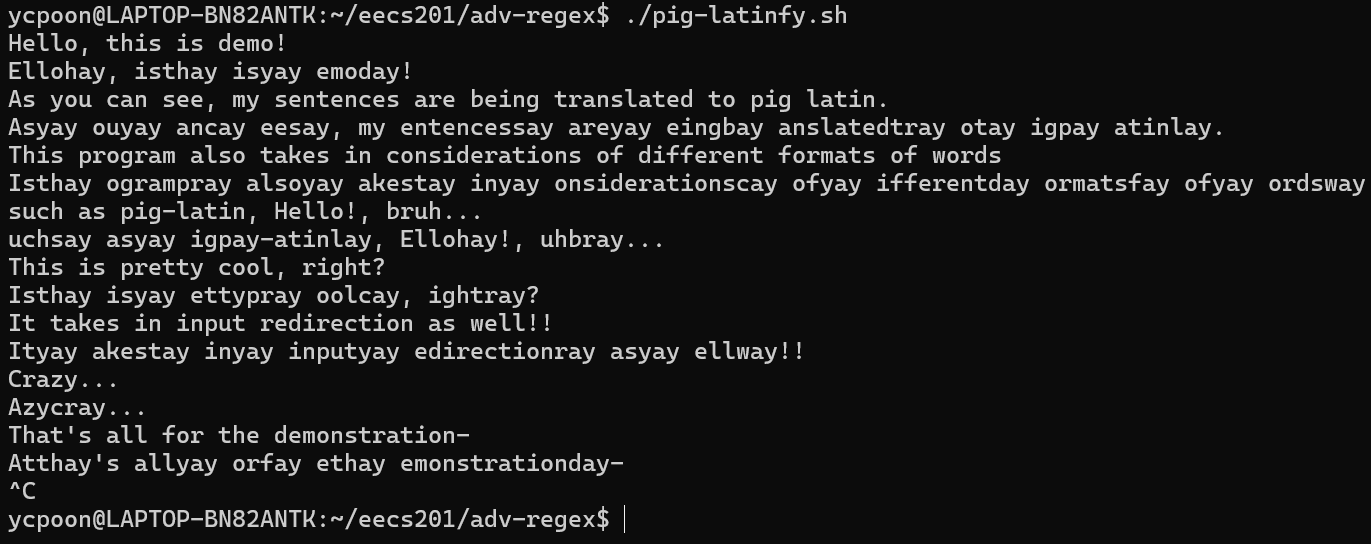

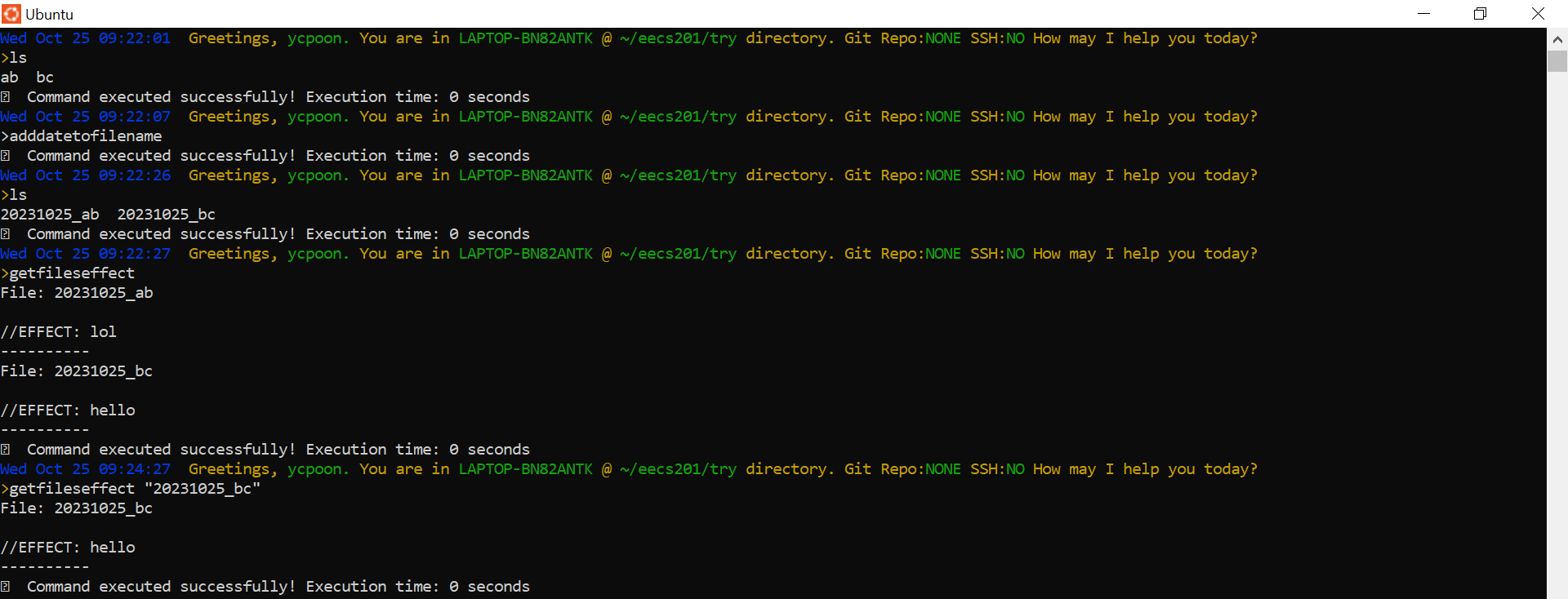

Customized Shell	Customized Shell Functions	Pig-Latinfy Program
